Specifications

• Dimensions

  add remove
  • Length:
    95.3 in
  • Seat height, unladen:
    27.4 in
  • Ground clearance:
    4.9 in
  • Rake (steering head):
    26
  • Trail:
    6.9 in
  • Wheelbase:
    64.0 in
  • Tires, front specifications:
    130/60B19 61H
  • Tires, rear specifications:
    180/55B18 80H
  • Fuel Capacity:
    6.0 gal
  • Oil capacity:
    5.2 qt.
  • Weight, as shipped:
    774 lbs
  • Weight, in running order:
    807 lb
  • Luggage capacity – volume:
    2.5 cu ft (0.07 m³)
  • Tire, type:
    Dunlop® Harley-Davidson Series, bias blackwall front and rear
• Engine

  add remove
  • Engine:
    Milwaukee-Eight™ 114
  • Bore:
    4.0 in
  • Stroke:
    4.5 in
  • Displacement:
    113.99 in³
  • Compression ratio:
    10.5:1
  • Fuel system:
    Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust:
    Black, 2-1-2 dual exhaust with tapered mufflers
• Performance

  add remove
  • Engine torque testing method:
    EC 134/2014
  • Engine torque:
    116.5 ft-lb
  • Engine torque (RPM):
    3250
  • Horsepower:
    95 HP / 71 kW @ 5020 rpm
  • Lean angle, right (deg.):
    32
  • Lean angle, left (deg.):
    31
  • Fuel economy testing method:
    EU 134/2014
  • Fuel economy:
    6.1 l/100 km (39 mpg)
  • CO₂ emissions testing method:
    EU 134/2014
  • CO₂ emissions :
    142 g/km CO₂
• Powertrain

  add remove
  • Primary drive:
    Chain, 34/46 ratio
  • Gear ratios (overall) 1st:
    9.593
  • Gear ratios (overall) 2nd:
    6.65
  • Gear ratios (overall) 3rd:
    4.938
  • Gear ratios (overall) 4th:
    4
  • Gear ratios (overall) 5th:
    3.407
  • Gear Ratios (overall) 6th:
    2.875
• Chassis

  add remove
  • Front fork:
    49 mm Dual Bending Valve
  • Rear shocks:
    Premium low height hand-adjustable rear suspension

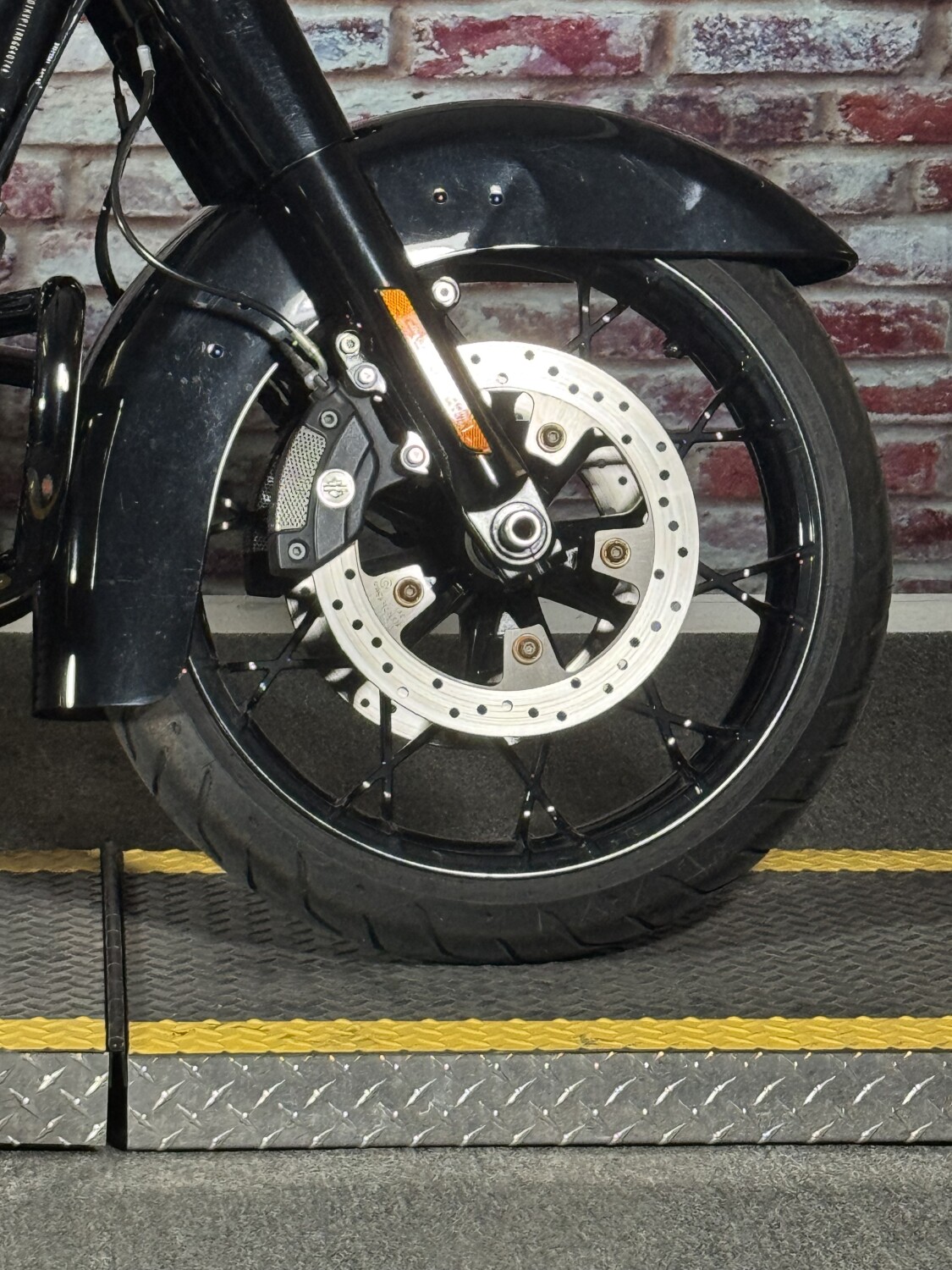

  • Wheels, front type:
    Gloss Black Prodigy
  • Wheels, rear type:
    Gloss Black Prodigy
  • Brakes, type:
    Dual floating rotors (front), fixed rotor (rear)
  • Brakes, caliper type:
    32 mm, 4-piston fixed front and rear
• Electric

  add remove
  • Lights (as per country regulation), indicator:
    LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam, 8W/28W tail/stop, front signal lights, rear turn signals
  • Gauges:
    Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
